説明
Torque rod bush, also known as torque bush, is an essential component of suspension systems for vehicles.
It is installed on the torque rods applied to the single axis of the non-independent suspension of trucks or passenger cars or applied to the double-axle of heavy-duty trucks.
The main function of the torque rod is to overcome the situation that the leaf spring or air spring only can transmit vertical force and lateral force but is unable to transmit traction force & breaking force.
And the reaction force corresponding to torsion when the vehicle turns through uneven roads.
Meanwhile, it plays a role in the positioning of the frame and axle to ensure safety and stability when the vehicle is running.
However, the torque rod bush installed on both ends of the torque rod mainly plays the role of shock absorption.
ンティコ can produce different kinds of torque rod bush to suit different vehicles by using premium quality natural rubber or polyurethane material and using Chemlok adhesive to bond elastomer material with metal parts.
It has sufficient strength and durability to withstand the vibrations and the forces from the wheels.
製品の品質はOE製品の品質レベルを満たしています. Currently, ンティコ® provides the following two types of torque rod bush.
1. Bonding type
The rubber, the core shaft, and the outer sleeve are bonded together by vulcanization. Due to the shrinkage occurring after the rubber has been vulcanized, there is a shrinkage tensile stress inside the rubber material, which is unfavorable to the fatigue life.
2. Bonding press-fit type
The rubber is bonded to the core shaft, or bonded to the outer sleeve together at the same time, and then press-fitted into the installation hole of the torque rod seat, to realize the effective connection of them.
In this way, there is a large compression prestress inside the rubber material, which is beneficial to the fatigue life.
Specific OE number of the above items as below：
ボルボ:
1628107, 274070, 1598588, 3159435, 274019, 273373, 20523294, 274068, 271187, 21295230, 275988, 85104224, 3093462
メルセデスベンツ:
0003500113, 0003500413, 0005861235, 0003500613, 0003501113, 0003503005, 0005861135, 0003500506, 0003300611, 0003300707, 0003502705, 0003503605, 0003503705, 0003504205, 0003501005, 0003502205, 0003504505, 6283300807, 6293300907, 0003505205, 0003502505, 0003503205, 0003503405, 0003502405, 0003503505, 0003504905, 0003502105, 0003504605, 0003505405, 0003502305, 0003504005, 0003504405, 0003505105, 0003503105, 6293300007, 9423260050, 0003500906
スカニア:
1368682, 349254, 273621, 550812, 639319, 1517403, 550799, 1435944, 1498131, 638862, 639370, 550806, 1498132
男:
81433150009, 81433156040, 81432710082, 81432710027, 81432206177S1, 81432206179S1, 81432206224S1, 81432206203, 81432706045, 81432706040, 81432206107, 81432206006, 81432306051, 81432306068, 81432306072, 81432706064, 81953016218, 81432706110, 81432706101, 81432706109, 81432706091, 81432206202, 81432206244, 81432706089
ルノー: 5001842823, 7421295230, 7485104224
DAF: 1252284, 0691709, 0513757, 691703, 689749, 689748
イベコ: 93161960, 042535204, 93192619, 42493431, 93192618, 503142719, 42488722, 93194457, 42536819,
どうやって: 2919030-5H, AZ9725520272, AZ9631521177, AZ9725529213
いすゞ: 1-51519-037-1, 1-51519-037-0, 1-51519-039-0, 1-51519-054-0, 1-51519-059-0, 1-51519-060, 1-51519-113-0, 1-51519-184-0, 1-53458-293-1, 1-53459-635-3
三菱: MC-812666-806960, MC-812666, MK330266, 3588042
日野: 49305-1110, 49305-1110L, 6903138006839, D15TLG0301, S40J9-E0190, S40J9-E0180, S40J9-E0170
日産: 55542-Z2008, 55542-Z2005, 55542-3001, 55542-00Z02, 55542-Z0002, 95164-30Z19
今のところ, ンティコ® 上記の在庫製品を選択して提供できます.

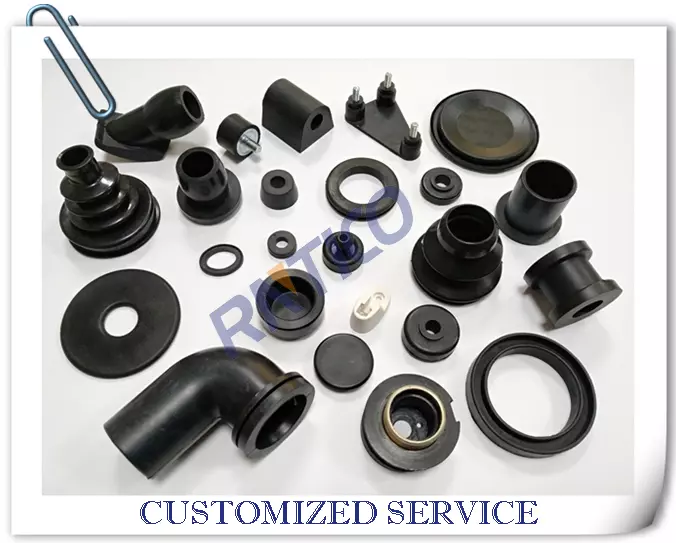

よろしくお願いします お問い合わせ その他の項目についてご要望がございましたら, ご要望に応じて製品をカスタマイズします.
